*최장거리 ( 평면 / 구면 ) --------------- 1,710 mm / 1,715 mm
*최단거리 ( 평면 / 구면 ) --------------- 1,040mm / 1,050 mm
*평면 각구도 사이즈 ( 외경 / 내경 ) --------------- 140 mm / 68 mm
*원형 각구도 사이즈 ( 외경 / 내경 ) --------------- 130 mm / 50 mm

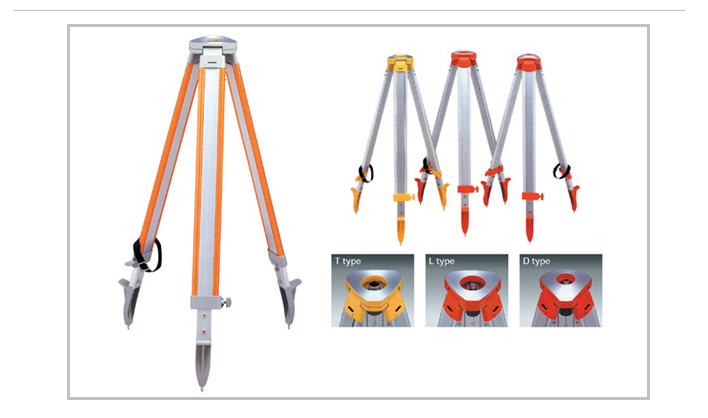

Item No. Color Head Center Screw Weight Packing
GJ - ATF35QO Orange Flat 35 mm 4.5 kg 1 x 4
GJ - ATFQO Orange Flat 5 / 8inch 4.5 kg 1 x 4
GJ - ATDQO Orange Domed 5 / 8inch 4.3 kg 1 x 4
GJ - ATF35QY Yellow Flat 35 mm 4.5 kg 1 x 4
GJ - ATFQY Yellow Flat 5 / 8inch 4.5 kg 1 x 4
GJ - AFDQY Yellow Domed 5 / 8inch 4.3 kg 1 x 4

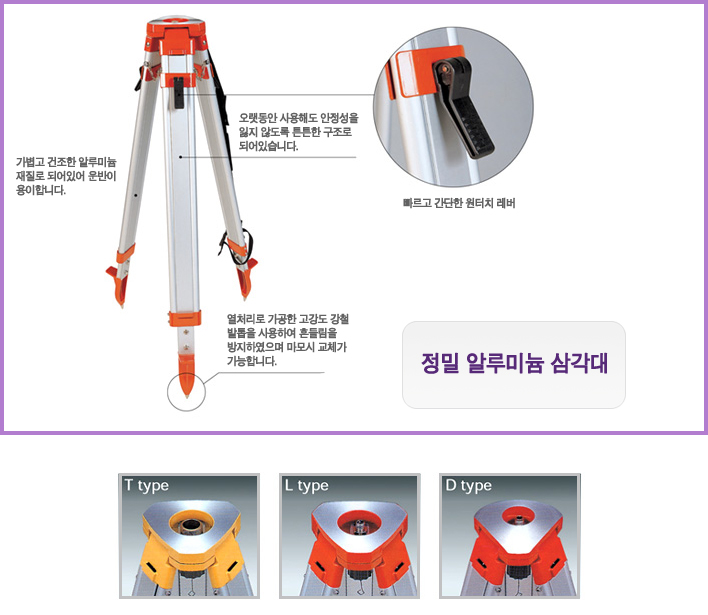

Item No. Color Head Center Screw Weight Packing
GJ - ATF35O Orange Flat 35 mm 4.5 kg 1 x 4
GJ - ATFO Orange Flat 5 / 8 inch 4.5 kg 1 x 4
GJ - ATDO Orange Domed 5 / 8 inch 4.3 kg 1 x 4
GJ - ATF35Y Yellow Flat 35 mm 4.5 kg 1 x 4
GJ - ATFY Yellow Flat 5 / 8 inch 4.5 kg 1 x 4
GJ - AFDY Yellow Domed 5 / 8 inch 4.3 kg 1 x 4

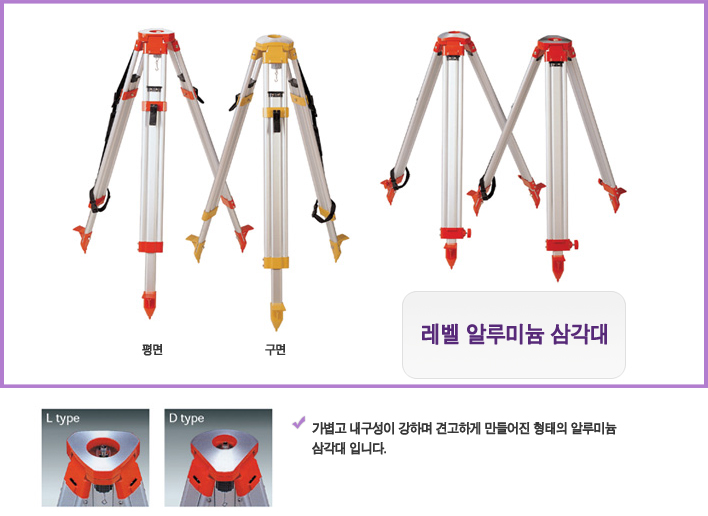

Item No. Color Head Center Screw Weight Packing
GJ - ATFLQ Orange Flat 5 / 8 inch 3.5 kg 1 x 4
GJ - ATDLQ Orange Domed 5 / 8 inch 3.5 kg 1 x 4

Item No. Head Center Screw Weight Packing
GJ - ATFL Flat 5 / 8 inch 3.5 kg 1 x 4
GJ - ATDL Domed 5 / 8 inch 3.5 kg 1 x 4

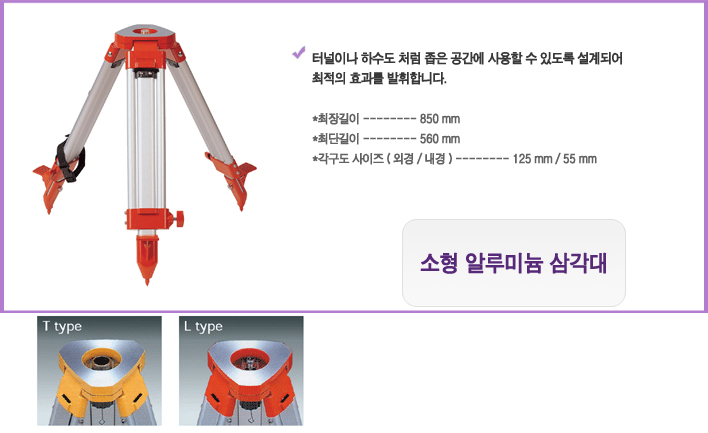

Item No. Head Center Screw Weight Packing
GJ - ATFS Flat 5 / 8 inch 2.6 kg 1 x 4
GJ - ATDL Flat 35 mm 2.6 kg 1 x 4


Item No. Head Center Screw Weight Packing
GJ - ATFS Flat 5 / 8inch 2.6 kg 1 x 4
GJ - ATDL Flat 35 mm 2.6 kg 1 x 4

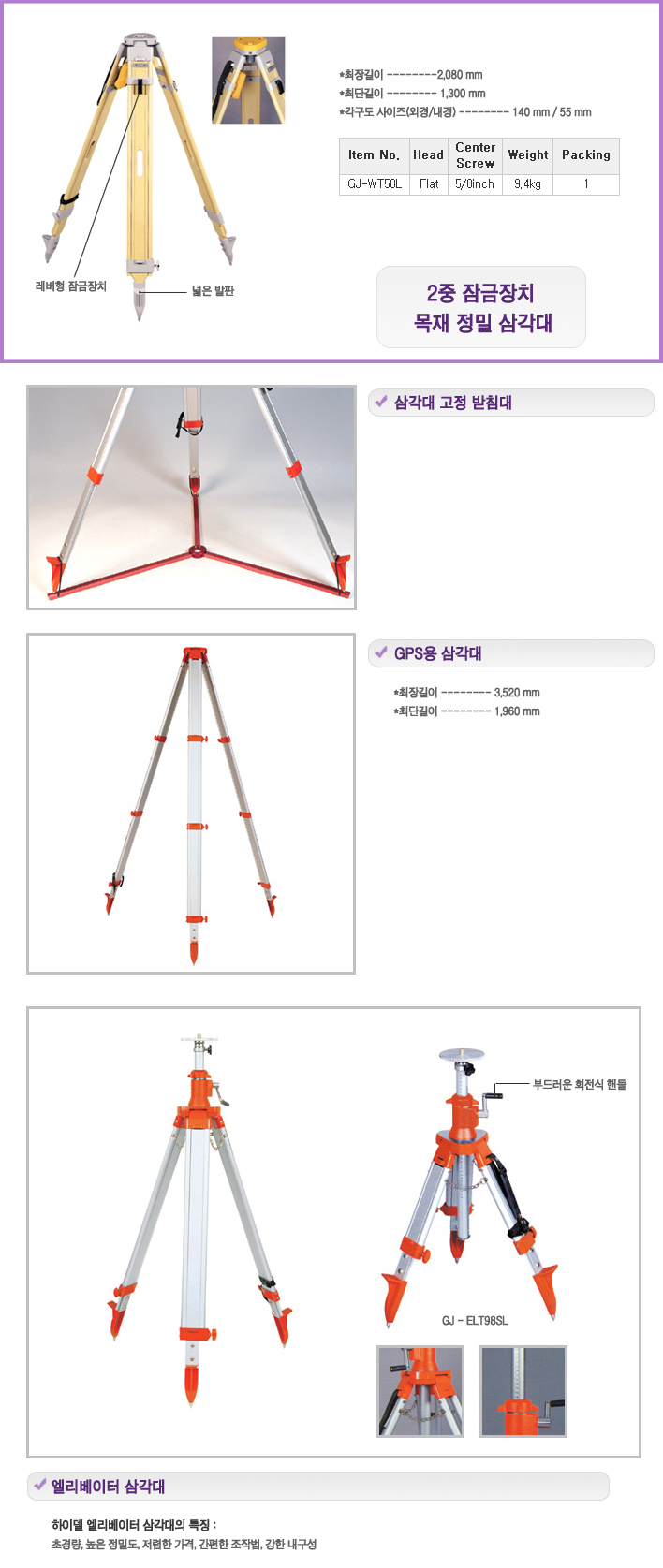

Item No. Max/Length Min.
Length		 Size of Circle Plate Elevator.
Length
GJ - ELT98LL 2,230 mm 1,2100 mm 128 mm 360 mm
GJ - ELT98L 1,630 mm 910 mm 128 mm 360 mm
GJ - ELT98SL 1,310 mm 750 mm 128 mm 360 mm

Item No. Head Center Screw Weight Packing
GJ - ELT98LL Flat 5 / 8 inch 6.0 kg 1
GJ - ELT98L Flat 5 / 8 inch 5.4 kg 1
GJ - ELT98SL Flat 5 / 8 inch 4.6 kg 1
